EPSON L3110

Caution:

•  This product requires careful handling of ink. If ink spills, wipe it off immediately with a damp towel to avoid permanent stains. If ink gets on your clothes or belongings, it may not come off.
• Epson cannot guarantee the quality or reliability of non-genuine ink. The use of non-genuine ink may cause damage that is not covered by Epson’s warranty.

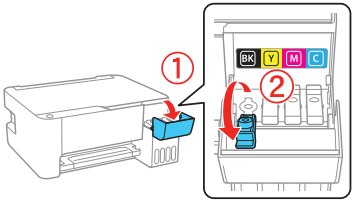

 1. Open the ink tank cover and the cap for the black ink tank.

Note: Refer to the color-coded sticker on the ink tank unit to identify the color of each tank.

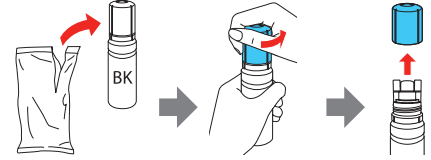

2. Unpack the black (BK) ink bottle. Hold the ink bottle upright and slowly turn the bottle cap to remove it.

Caution: Do not shake or squeeze the ink bottles. Do not touch the top of the ink bottle after its cap is removed.

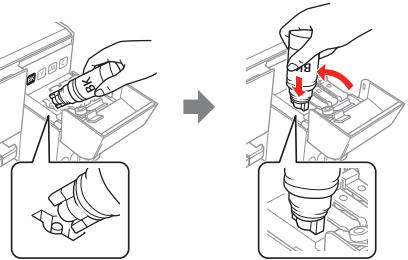

3. Position the top of the ink bottle along the front of the filling port, then slowly stand the bottle upright to insert it.

Note: Do not force the bottles into position; they are keyed for each color.

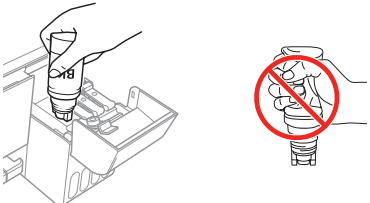

4. Wait for the ink to fill the tank. Do not squeeze the bottle.

Note: Ink flows into the tank and stops automatically when the ink tank is filled to the upper line. If ink does not flow from the bottle, lift and reinsert the bottle.

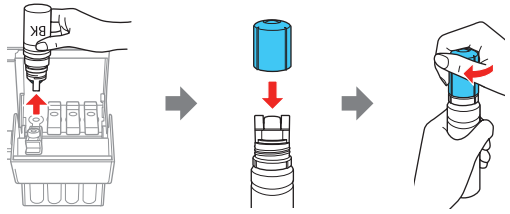

5. When the ink tank is full, remove the ink bottle and securely close it with the bottle cap.

Note: Do not leave the ink bottle inserted; otherwise the bottle may be damaged or ink may leak. If any ink remains in the bottle, store the bottle upright for later use.

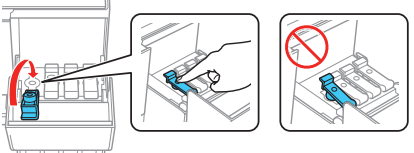

6. Close the black ink tank cap.

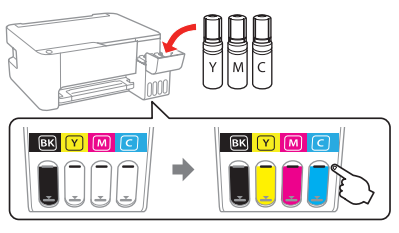

7. Repeat the previous steps for the other colors.

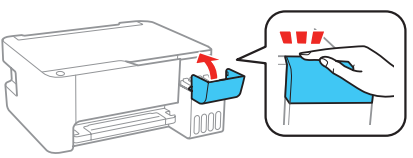

8. Close the ink tank cover.
