EPSON L210 - Ink Replacement

Modified on Fri, Jun 10, 2022 at 10:38 AM

Refilling the Ink Tanks

Make sure you have new ink bottles handy and have read the ink safety precautions before you begin.

You can continue to use the product even if one or more ink tanks are not filled all the way. However, to keep your product operating at its best, fill all the ink tanks up to the top line.

Caution:

Wear plastic gloves while refilling the ink tanks to avoid staining your hands.

Place a sheet of paper under the ink tank area in case of spills.
Turn on your product.
Make sure the power light is on, but not flashing.
If your product's LCD screen displays the message "It is time to reset the ink levels. Reset now?" Press 1Yes to reset the ink levels. You see the message "Reset the ink levels by refilling ink. Refill all the ink tanks with the ink. Press OK." Continue to the next step. Press the OK button after you refill the tanks.

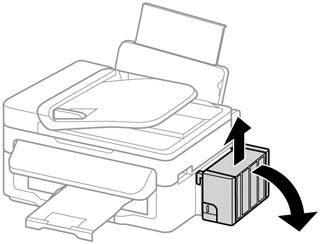

Unhook the ink tank unit from the product and lay it down.

Note: Do not pull on the ink tubes.

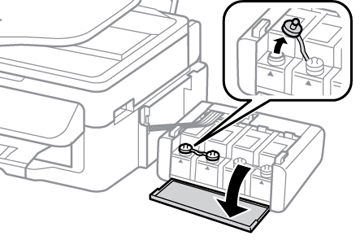

Open the ink tank unit cover, then remove the ink tank’s cap.

Note: Make sure the color of the ink tank matches the ink color you want to refill, and only remove the cap from that ink tank. Be careful not to spill any ink.

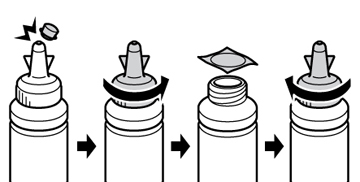

Snap off the tip of the bottle cap, but do not dispose of the bottle cap tip so you can use it to seal the bottle cap later, if necessary. Then remove the cap, remove the seal from the bottle, and replace the cap on the bottle.
Note: Make sure the color of the ink bottle matches the ink color you want to refill.

Caution:
Install the bottle cap tightly; otherwise, ink may leak.

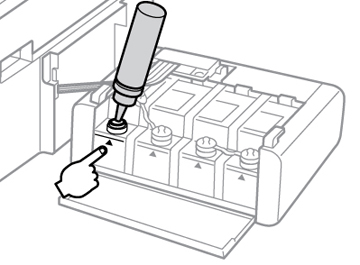

Refill the ink tank with the correct color ink up to the upper line on the ink tank.

Note: Refill all low ink tanks to the upper limit, as the ink level counter will be reset for all colors.
If any ink remains in the ink bottle after filling the ink tank, place the bottle cap tip securely on the bottle cap and store the ink bottle upright for later use.

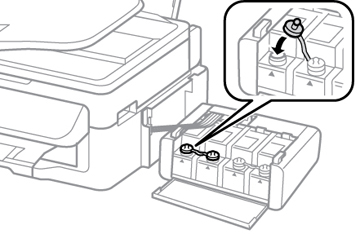

Place the rubber cap securely on the ink tank.
Repeat the previous steps as necessary for each ink color you need to refill.

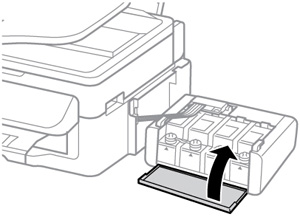

Close the ink tank unit cover.

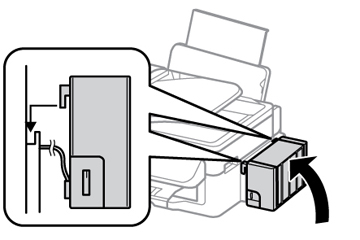

Hook the ink tank unit onto the product.
If your product prompted you to reset the ink levels, press the OK button to finish. You see the message "The ink levels have been reset."
