HP LaserJet Pro M479DW

   CAUTION:

To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. If the toner cartridge must be removed from the printer for an extended period of time, place the cartridge in the original plastic packaging, or cover the cartridge with a lightweight opaque item.

   CAUTION:

If toner gets on clothing, wipe it off by using a dry cloth and wash the clothes in cold water. Hot water sets toner into fabric.

NOTE:

Information about recycling used toner cartridges is in the toner cartridge box.

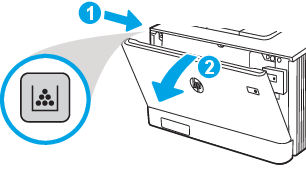

1. Open the front door by pressing the button on the left panel.
   Figure : Open front door

2. Grasp the blue handle on the toner cartridge drawer, and then pull out the drawer.
   Figure : Pull cartridge drawer out

3. Grasp the handle on the toner cartridge, and then pull the toner cartridge straight up to remove it.
   Figure : Pull up to remove the cartridge

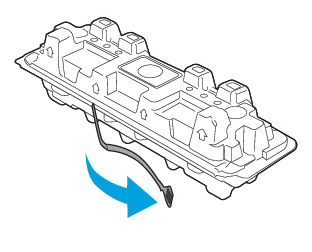

4. Remove the new toner cartridge package from the box, and then pull the release tab on the packaging.
   Figure : Pull release tab on cartridge packaging

5. Remove the toner cartridge from the opened packaging shell. Place the used toner cartridge in the shell for recycling.
   Figure : Remove cartridge from opened packaging

6. Hold both ends of the toner cartridge and rock it 5-6 times.
   Figure : Shake the toner cartridge

7. Do not touch the imaging drum on the bottom of the toner cartridge. Fingerprints on the imaging drum can cause print-quality problems. Also, do not expose the cartridge to light unnecessarily.
   Figure : Avoid touching drum

8. Insert the new toner cartridge into the drawer. Make sure that the color chip on the cartridge matches the color chip on the drawer.
   Figure : Insert the new cartridge

9. Close the toner cartridge drawer.
   Figure : Push the cartridge drawer in

10. Close the front door.
    Figure : Close the front door
