EPSON EcoTank L15150

Modified on Fri, Jun 10, 2022 at 10:38 AM

Removing and Installing Ink Cartridges

Make sure you have your replacement cartridges handy before you begin. You must install new cartridges immediately after removing the old ones.

Caution:

Leave your old cartridges in the printer until you are ready to replace them to prevent the print head nozzles from drying out. Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.

Turn on your product.
- If an ink cartridge is expended, you see a message on the LCD screen. Note which cartridges need to be replaced and press the OK button, then choose Replace now.
- If you are replacing a cartridge before you see a message on the LCD screen, press the Setup button, select Maintenance, then select Ink Cartridge Replacement.

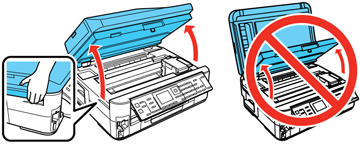

Lift up the scanner unit.
Open the cartridge cover.
Squeeze the tab on the cartridge and lift the cartridge straight up to remove it.
Note: Dispose of used cartridges carefully. Do not take the used cartridge apart or try to refill it.
Warning: If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out and see a doctor right away. Keep ink cartridges out of the reach of children.
Before opening the new cartridge package, shake it gently four or five times.

Caution:
Do not shake the cartridges after opening the packages, or ink may leak.
Remove the cartridge from the package.
Caution:
Do not touch the green chip on the cartridge. Install the new cartridge immediately after removing the old one; if you do not, the print head may dry out and be unable to print.
Remove the yellow tape from the bottom of the cartridge.

Caution:
Do not remove any other labels or seals, or ink will leak.
Insert the new cartridge into the holder and push it down until it clicks into place.
Close the cardtridge cover and push it down until it clicks into place.
Figure 1.

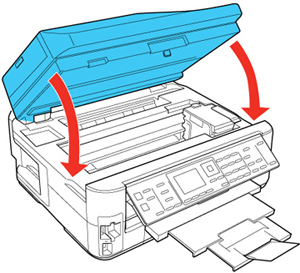

Lower the scanner unit.

The print head moves to its home position and the printer starts charging the ink. This takes about 2.5 minutes. When you see a confirmation message on the screen, ink charging is finished.
Caution:
Never turn off the product while the Onlight is flashing or you will waste ink.
If you see an error screen telling you an ink cartridge is installed incorrectly, lift up the scanner unit and press the ink cartridge down until it clicks into place. When you're finished, press the OK button.

If you remove a low or expended ink cartridge, you cannot re-install and use the cartridge.

Caution:

If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and store it in the same environment as the printer. The valve in the ink supply port is designed to contain any excess ink, but do not touch the ink supply port or surrounding area. Always store ink cartridges with the label facing up; do not store cartridges upside-down.
