Print cartridge removal

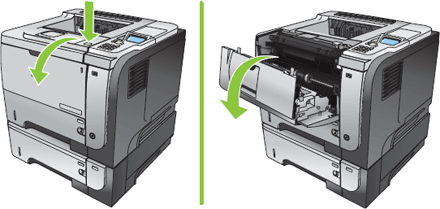

- Press the top-cover release button, and open the top cover.

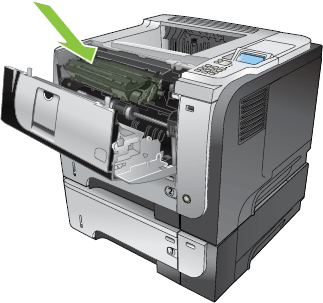

- Remove the used print cartridge from the product.

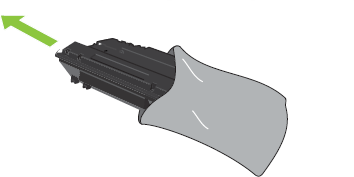

- Remove the new print cartridge from the bag. Place the used print cartridge in the bag for recycling.
- Grasp the front and back of the print cartridge, and distribute the toner by gently rocking the print cartridge five or six times.
CAUTION:
Do not touch the shutter or the surface of the roller.

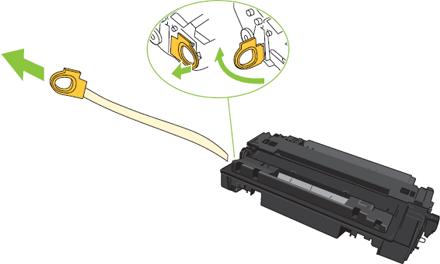

- Remove the shipping tape from the new print cartridge. Discard the tape according to local regulations.
- Align the print cartridge with the tracks inside the product, and insert the print cartridge until it is firmly seated.
- Close the top cover. After a short time, the control panel should display Ready.
